Item | Value |

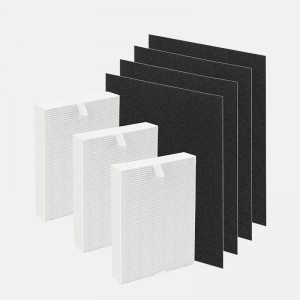

Name | H13 Grade True HEPA andActivated Carbon Filters for HPA300 |

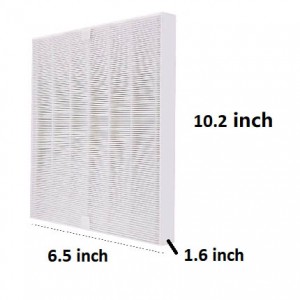

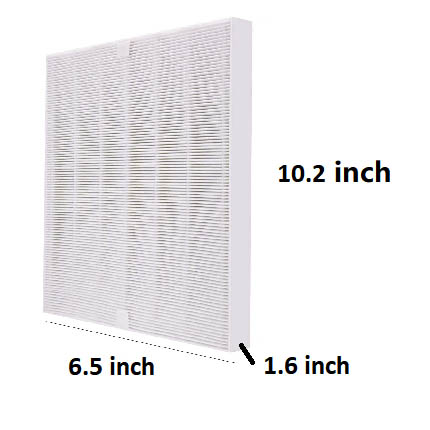

HEPA filter size | 10.2" x 6.5" x 1.6" |

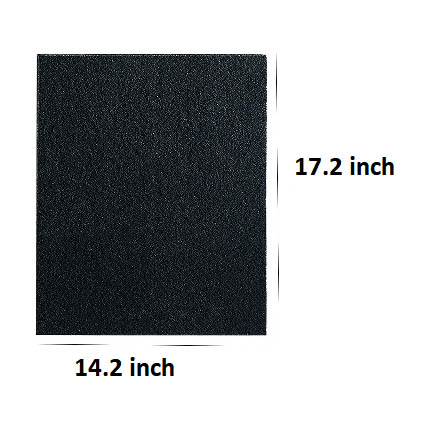

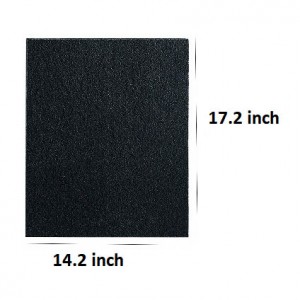

Carbon filter | 14.2" x 17.2" x 0.2" |
Customize Options | Fabric -H13-H16-Fabric with different functionsSize /Package/Frame Design and Printing |

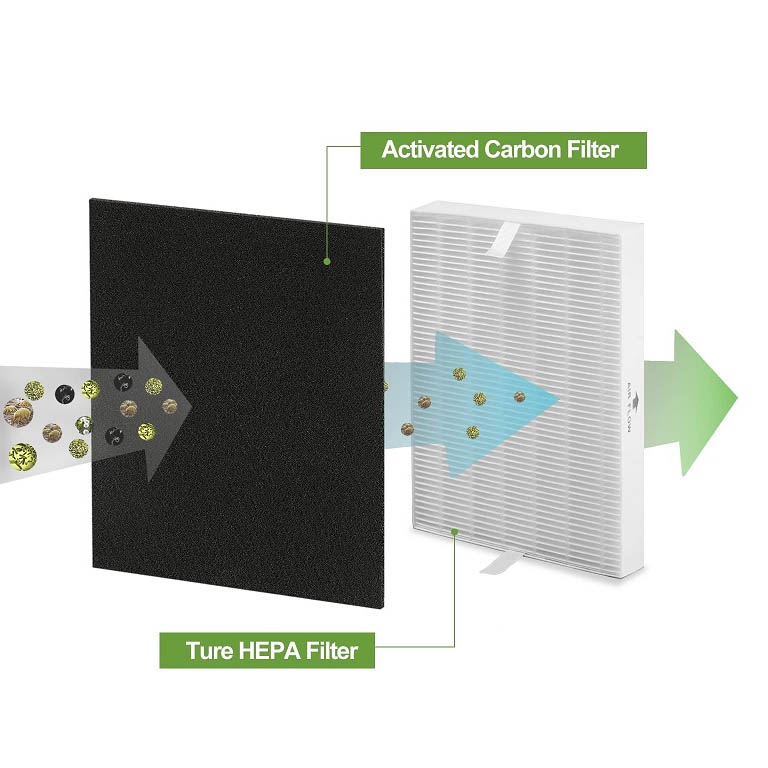

● Multi-Layer Structure Of Air Purifier Filters
● Material Choice-hepa Air Purifier Filter
Material Overview
● KISSAIR® HEPA Air Purifier Filter (Provide OEM & ODM Service)
● Filter media: PP/ composite PP&PET filter
● Perfomance: Filtration efficiency is above 99% -99.9%
● Excellent anti-bacterial and Ultimate Anti-Virus and particle capture functions(Whiite /Blue/Cutomize )
● Application: Air purifier and other purifying products
BS EN1822-12019 | ISO 29463-12017 | ||||
Filter class and group |
Overall value | Filter class and group |
Overall value | ||
Efficiency | Penetration | Efficiency | Penetration | ||
(%) | (%) | (%) | (%) | ||
E10 | ≥85 | ≤15 | |||
E11 | ≥95 | ≤5 | ISO 15E | ≥95 | ≤5 |
ISO 2OE | ≥99 | ≤1 | |||
E12 | ≥99.5 | ≤0.5 | ISO 25E | ≥99.5 | ≤0.5 |
ISO 30E | ≥99.9 | ≤0.1 | |||
H13 | ≥99.95 | ≤0.05 | ISO 35H | ≥99.95 | ≤0.05 |
ISO 40H | ≥99.99 | ≤0.01 | |||
H14 | ≥99.995 | ≤0.005 | ISO 45H | ≥99.995 | ≤0.005 |
ISO 50U | ≥99.999 | ≤0.001 |
Air Purifier Active Carbon filter
Material Overview
● KISSAIR® Active Carbon Air Purifier Filter (Provide OEM & ODM Service).
● Filter media: Polyurethane sponge, Activated Carbon particles.
● Function: Fire resistant and washable, and can keep 70% filtration efficiency after 10 times washing.
● Performance: Effectively remove the volatile harmful gas such as formaldehyde, benzene and ammonia etc.
● Application: Range hood, Air purifier pre filters, Automobile, Central Air conditioning etc.
Active Carbon Particles Air Purifier Filter
Material Overview
● KISSAIR® Active Carbon Particles Filter (Provide OEM & ODM Service).
● Filter media: PP HolyCore with Active Carbon Particles filled in.
● Function: Customize available ,effectively absorb the VOC, cigarette smell, odor etc.
● Performance: Formaldehyde removal rate above 90% tested in 30 m3 test chamber for 1 hour.
● Application: Air purifier filters.
Anti-Bacterial and Anti-Virus Filter
Material Overview
● KISSAIR® Anti-bacterial and Anti-Virus HEPA Air Purifier Filter (Provide OEM & ODM Service).
● Filter media: PP/ composite PP&PET filter with Ag+ and Anti-bacterial Material.
● Structure and function: A multilayer filter for remove allergens and virus.
-HEPA is one of the filters to remove the pollen, pefs fur and cigarette particles etc.
-MultHayer antiviral filter can kill bacteria, virus and acarid etc. effectively.
● Perfomance: Filtration efficiency is above 99% -99.99%.
● Excellent anti-bacterial and Ultimate Anti-Virus and particle capture functions(Whiite /Blue/Cutomize ).
● Application: old, young, pregnant women and other susceptible population.
Ozone Removal Filter
Material Overview
● KISSAIR® Ozone Removal Filter (Provide OEM & ODM Service).
● Filter media: Aluminium honeycomb and unique Ozone Removal formula (Invention Patent No.:22L200710026260.6.)
● IAQ(lndoorAir Quality):
Ozone limitation is 0.16mg/m3 ref. GB/T 18883-2002.
Ozone limitation value is 0.1mg/m3 ref. UL 867 standard.
● Application: Air purifier, printer, copier, etc.
PHOTO CATALYST FILTER
1. High-efficiency filtration capacity: advanced photocatalysis technology can effectively remove harmful gases and bacteria and viruses in the indoor air.
2. Environmental protection and energy saving: the photocatalyst filter uses ultraviolet light to activate the catalyst for reaction, without consuming energy and replacing the filter screen, which is very environmental protection and energy saving.
ANTI-MITE FILTER
Performance: Tested by Chinese Center for Disease Control and prevention ref, the standard FZ/T 01100^008, the acarid death rate approaches to 82.4%.
COLD CATALYST FILTER
Principle: Cold Catalyst can decompose volatile compounds effectively, such as formaldehyde, ethyl mercaptan etc., in low or normal temperature without heat or light energy consumption, and kill escherichia coli, staphylococcus aureus and other bacteria as well.
Base Material: Aluminum honeycomb, sponge, non-woven etc.
Application: Purifier, Air conditioner or other equipment needs odor removal and anti-bactterial etc..
